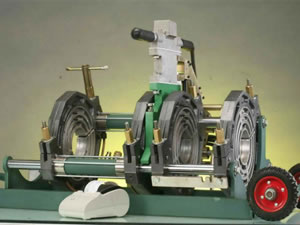

Automatic Butt Fusion Machine

Introduction:
Automatic butt fusion machine is a device to make the plastic pipe welding process automatically in accordance with people's setting goals. The whole welding process is executed according to the procedure which is programmed in the controlling center. The operator inputs the specification of pipe and other related parameters, the automatic butt fusion welding machine will finish the whole welding process according to the order. Welding process parameters include welding temperature (T), pressure in different welding phases (P) and different time slots (t). Automatic butt fusion machine can reduce the influence resulted from man-made factors to the maximum extent.

Features of Automatic Butt Fusion Welding Machine:
1. Control system of microcomputer can detect automatic welding process.
2. Automatic butt fusion machine can be used at construction worksite and workshop.
3. It is suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF.
4. The automatic butt fusion welding machine possesses removable polytetrafluoroethylene coated heating plate with high accuracy temperature control system.
5. Our automatic butt fusion machines are equipped with PLC control system for clamping, cutting and heating joint.
6. It owns the function of automatic control of fusion duration, temperature and pressure.
7. The automatic butt fusion welding machine can automatically monitor and indicate each fusion step.
8. Automatic butt fusion machine is able to store and print various status parameters at each welding joint to help analysts quickly and accurately analyze welding quality.

Working Process of Automatic Butt Fusion Welding Machine:
1. Automatic control cut milling tube end face
2. Automatically detect pipe whether clamping
3. Manually inspect pipes the wrong side of the amount and adjust
4. Automatic and accurate detection of drag pressure
5. Automatic control ring height
6. Automatic control endothermic time
7. Automatically limit conversion time (heating plate optional pop-up automatically or manually removed)
8. Automatic control boost process

Technical Parameters of Automatic Butt Fusion Machine:

Model	AFM-250	AFM-315
Scope of Work	Φ250-Φ90	Φ315-Φ90
Working Power	single-phase 220V
Heating Plate Power	1.8 KW	2.2 KW
Cutter Power	1.1 KW
Hydraulic Station Power	750 W	750 W
Total Power	3.65 KW	4.05 KW
Ambient Temperature	-10 ℃ to 45 ℃
Heating Time	20-30 minutes
Pressure Range	0.3 to 7.6 Mpa
Hydraulic Cylinder Cross-Sectional area	1298 mm²	954 mm²
Implementation of Standards	TGS D2002 (China Welding Rules) DVS2207-1 (Germany Standard) ISO11414 (International Standard)

Packaging Parameters of Automatic Butt Fusion Welding Machine:

Model	AFM-250	AFM-315
Configuration	Φ200、Φ160、 Φ110	Φ250、Φ200、Φ160、 Φ110
Optional Slips	Φ180、 Φ140、Φ125、 Φ90、Φ75	Φ280、Φ225、Φ180、 Φ125
Attached Machine Accessories	Cutter, Hydraulic Station, Hot Plates, Slips, Storage Racks, Electrical Control Box	Machine Cutters, Hydraulic Station, Heated Board, Slips, Storage Racks, Electrical Control Box
Packing Size	1310×600×600	1310×850×650
	640×460×520	640×460×520
	700×470×540	1420×1350×850
Total Size	0.83 m²	1.03 m²
Weight	215 kg	231 kg

Related Products:
1. Hydraulic Butt Fusion Machine
2. Manual Butt Fusion Machine
3. CNC Butt Fusion Machine
4. HDPE Butt Fusion Machine
5. Large Size Butt Fusion Machine
6. Socket Fusion Machine
7. Angle Fusion Machine

Jilin Songjiang Smart Joint Co., Ltd is a full-service manufacturer and supplier of automatic butt fusion machines in China. In addition to this automatic butt fusion welding machine, we have focused on producing pipe fittings for customers, such as electrofusion fittings, butt fusion fittings, PE transitional fittings, irrigation fittings, stub flange fittings, and so on. With high quality assurance, our fusion machines are exported to Algeria, UAE, Egypt, Australia, Brazil, Poland, Denmark, Germany, Canada, Libya, Malaysia, the United States, Peru, Saudi Arabia, Tunisia, Turkey, Uzbekistan, New Zealand, Iran, Israel, Chile, Japan, etc.
